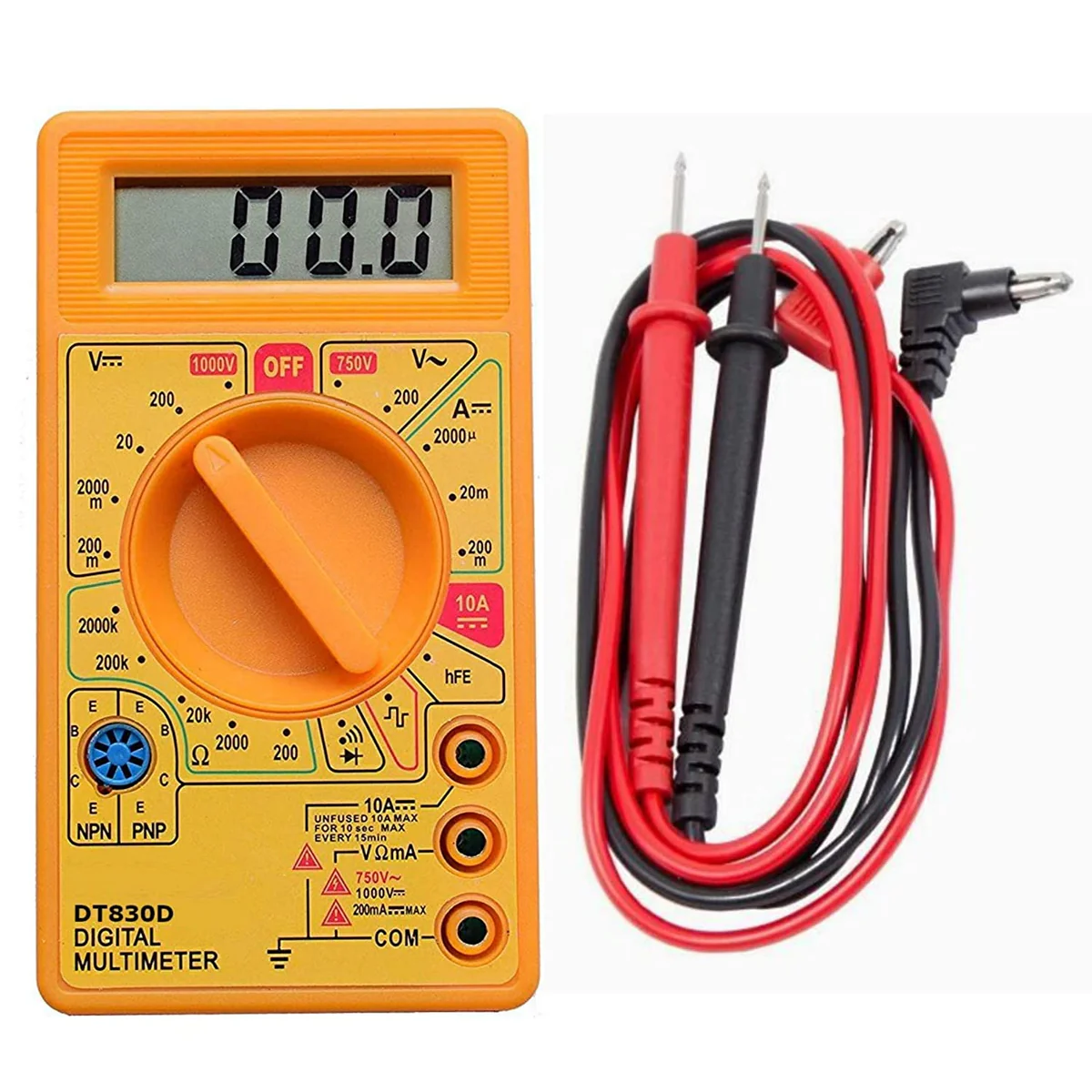

DT830D - Pocket Size Digital Multimeter - Multipurpose Electric meter

This brand new and Latest Digital Multimeter Small Yellow Color LCD AC DC Measuring Voltage Current is a Small Multimeter for your day to day needs. If you have basic knowledge about Multimeters you can try this small Multimeter for basic continuity checks, Voltage Measurements and many more.

A multimeter or a multitester, also known as a VOM (Volt-Ohm meter), is an electronic measuring instrument that combines several measurement functions in one unit. A typical multimeter would include basic features such as the ability to measure voltage, current, and resistance.

Analog multimeters use a microammeter whose pointer moves over a scale calibrated for all the different measurements that can be made. Digital multimeters (DMM, DVOM) display the measured value in numerals, and may also display a bar of a length proportional to the quantity being measured. Digital multimeters are now far more common than analog ones, but analog multimeters are still preferable in some cases, for example when monitoring a rapidly-varying

As the name suggests it is the multifunction device for all your testing need for daily work. When testing DC voltage, AC voltage, DC current, resistance, diode, buzzer, and battery, connect the red test lead to “VΩmA” jack and black test lead to “COM” jack, whereas When you need to test the current more than 200mA, connect the red test lead to “‘ 10A≡” jack and black test lead to “COM” jack. And When while testing the temperature, connect the temperature probe to “VΩmA” jack or “COM” jack.

When testing the magnifying ratio of the transistor, turn the switch to hFE position and connect the transistor to the eight hole jack available in blue color. For the Square wave output, the frequency is 50Hz, the voltage is approximately 3Vp-p. The output jack is “VΩmA” and “COM”

Features :

1. Small size makes it comfortable in many areas
2. Brand new product.
3. Good for newbies with basic knowledge of VI.
